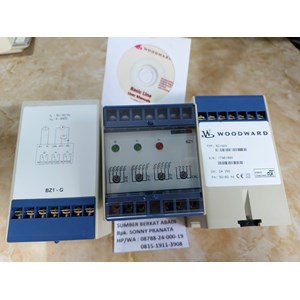

WOODWARD SEG BZ1-G-24 SPEED RELAY BZ1G24 BZ1 G24 BZ1G 24 - GENUINE

WOODWARD SEG BZ1-G-24 SPEED RELAY BZ1G24 BZ1 G24 BZ1G 24 - GENUINE

Brand = WOODWARD SEG
Part Number = BZ1G24
Description = Speed Relay
Voltage = 24 VDC
Frequency = 50 / 60 Hz

WOODWARD - GENUINE PRODUCT 100%

Application
Speed supervision of signets

Function
Via the output frequency of the generator, the BZ1 detects the speed of the genset to be supervised. The relay is provided with three independently
adjustable elements for ignition speed, under- and overspeed.
The rated frequency can be changed from 50 Hz (left stop) to 60 Hz (right stop) by means of potentiometer CAL. At CAL-A2 a current of 0 - 20 mA in prportion
to the speed is available for indication of speed.

Technical data
Auxiliary voltage
terminals (A1 - A2) = 2 V DC, 24 V DC +- 40 %
Gen. rated frequency = 50/60 Hz, 4-500 V AC
Hysteresis = 2 % of fn
Power consumption = 4 VA
Therm. load carryng capacity = continuous 1.4 x un
Returning time = < 450 ms
Minimum operating time = < 650 ms
Output current CAL = 0-2 mA DC, Ri<-100 ohm, 100% fn = 15 mA

WOODWARD - GENUINE PRODUCT 100%
